DN125 Putzmeister Concrete Pump Parts C Valve Casting Steel

مكان المنشأ الصين
اسم العلامة التجارية SDBL
إصدار الشهادات ISO
رقم الموديل DN125
الحد الأدنى لكمية 1 قطعة
الأسعار قابل للتفاوض
تفاصيل التغليف صندوق كرتون
وقت التسليم في غضون 7 أيام بعد الدفع
شروط الدفع ويسترن يونيون ، موني جرام ، T / T
القدرة على العرض 500 قطعة شهريا

اتصل بي للحصول على عينات مجانية وكوبونات

ال WhatsApp:0086 18588475571

(ويتشات): 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.

x
تفاصيل المنتج
اسم المنتج صمام بوتسمايستر سي النموذج رقم DN125
تكنولوجيا صب الصلب المواد 20 # فولاذ
سطح الأنابيب السفع الرملي التطبيق أنبوب مضخة الخرسانة
إبراز

DN125 Putzmeister Concrete Pump Parts,Putzmeister Concrete Pump Parts C Valve,Casting Steel concrete pump accessories

,

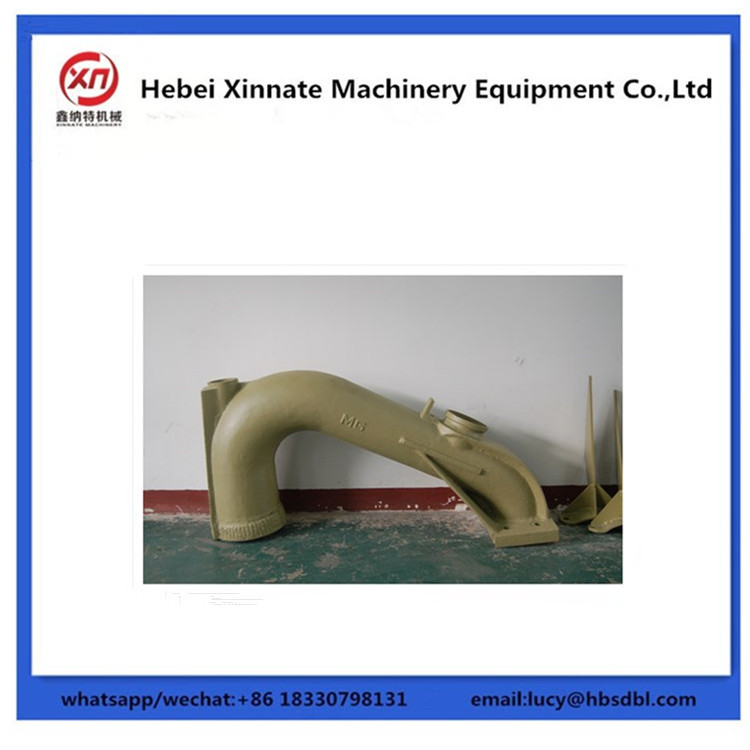

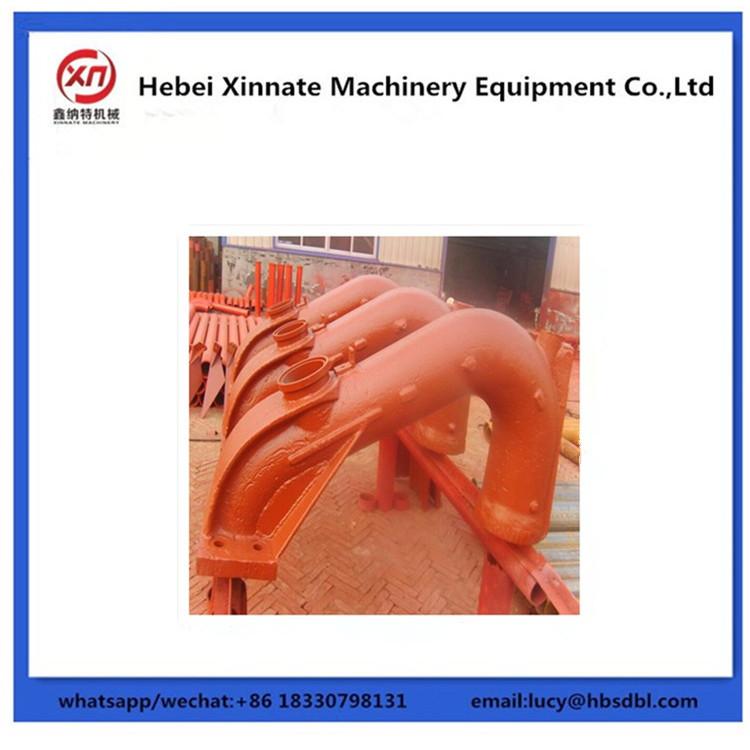

Putzmeister Concrete Pump Parts C Valve

,

Casting Steel concrete pump accessories

اترك رسالة
منتوج وصف

Concrete Pump Parts C Valve/Putzmeister C Valve/Wear Sparts C Valve

1.Product description

There is one of putzmeister concrete pump C valve, which is used on the concrete truck pump. Size is DN125, material is 20#,45Mn, and so on material.The utility model relates to a vertical tubular distributing valve. Its working principle is the same as the S - shaped pipe valve, but the discharge end is vertically arranged and the valve tube is C shaped. As the pipe valve swings in the horizontal surface, the interface with the Delivery Cylinder should be made into a circular arc surface. The C shaped valve is arranged in the hopper, and one end is connected with the concrete pump outlet 1, and the other end is swung back and forth under the action of the two hydraulic cylinders and the 6 piston rods, which are respectively communicated with the two conveying cylinders 5 to realize the process of material suction and discharging.

Producr name Putzmeister C valve
Model No. DN125
Material 20# Steel
Technology Casting steel
Pipe surface Sandblasting
Application Concrete pump pipe



2.We can also provide other accessories related to C valve, such as C valve cover plate, C valve plug connecting rod, C valve stirring short shaft, C valve stirring blade, C valve swing cylinder seal and other accessories.

DN125 Putzmeister Concrete Pump Parts C Valve Casting Steel 0

3.Putzmeister another wear parts

DN125 Putzmeister Concrete Pump Parts C Valve Casting Steel 1

4.Other wear parts in stock are available for your choice

DN125 Putzmeister Concrete Pump Parts C Valve Casting Steel 2
